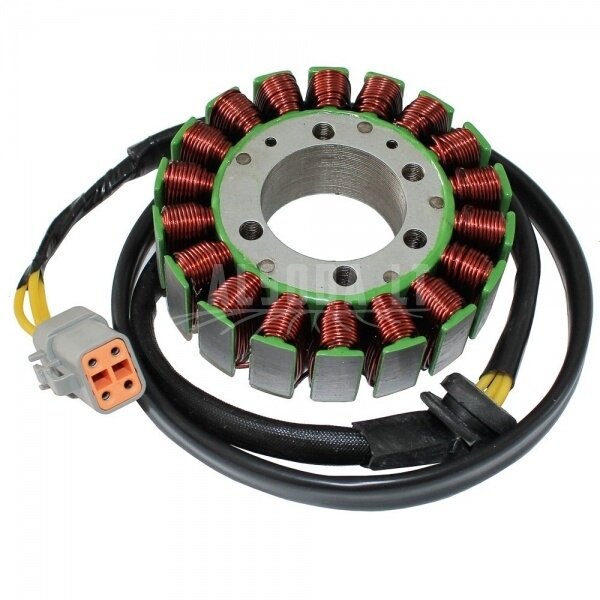

Stator Apvijos Can-am Outlander renegade 400 500 650 800 G1 420296907

Stator Apvijos Can-am Outlander renegade 400 500 650 800 G1 420296907 Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials Highest grade copper windings, resistant to 200 degrees Celsius. Connector included Dimensions: Interior diameter: 41 mm Exterior diameter: 104 mm Thickness: 30 mm Length of wires stator to grommet : 140mm Length of wires grommet to plug : 850mm Other specifications: Number of wires: 3 Number of plugs: 1 Number of terminals: 3 Wire to wire resistance: Alternator: Yellow between each Yellow = 0.4 ohms +/-20% assemblies: 2006 Outlander 650 STD 4 X 4 - Magneto 2006 Outlander 650 XT 4 X 4 - Magneto 2006 Outlander 800 STD 4 X 4 - Magneto 2006 Outlander 800 XT 4 X 4 - Magneto 2006 Outlander MAX 650 STD 4 X 4 - Magneto 2006 Outlander MAX 650 XT 4 X 4 - Magneto 2006 Outlander MAX 800 STD 4 X 4 - Magneto 2006 Outlander MAX 800 XT 4 X 4 - Magneto 2007 Outlander 500 STD 4 X 4 - Magneto 2007 Outlander 500 XT 4 X 4 - Magneto 2007 Outlander 650 STD 4 X 4 - Magneto 2007 Outlander 650 XT 4 X 4 - Magneto 2007 Outlander 800 STD 4 X 4 - Magneto 2007 Outlander 800 XT 4 X 4 - Magneto 2007 Outlander MAX 500 STD 4 X 4 - Magneto 2007 Outlander MAX 500 XT 4 X 4 - Magneto 2007 Outlander MAX 650 STD 4 X 4 - Magneto 2007 Outlander MAX 650 XT 4 X 4 - Magneto 2007 Outlander MAX 800 LTD 4 X 4 - Magneto 2007 Outlander MAX 800 STD 4 X 4 - Magneto 2007 Outlander MAX 800 XT 4 X 4 - Magneto 2007 Renegade 800 EFI - Magneto 2008 Outlander 400 EFI STD - Magneto 2008 Outlander 400 EFI XT - Magneto 2008 Outlander 500 STD - Magneto 2008 Outlander 500 XT - Magneto 2008 Outlander 650 STD - Magneto 2008 Outlander 650 XT - Magneto 2008 Outlander 800 STD - Magneto 2008 Outlander 800 XT - Magneto 2008 Outlander MAX 400 EFI STD - Magneto 2008 Outlander MAX 400 EFI XT - Magneto 2008 Outlander MAX 500 STD - Magneto 2008 Outlander MAX 500 XT - Magneto 2008 Outlander MAX 650 STD - Magneto 2008 Outlander MAX 650 XT - Magneto 2008 Outlander MAX 800 LTD - Magneto 2008 Outlander MAX 800 STD - Magneto 2008 Outlander MAX 800 XT - Magneto 2008 Renegade 500 - Magneto 2008 Renegade 800 - Magneto 2008 Renegade 800 X - Magneto 2009 Outlander 400 EFI - Magneto 2009 Outlander 500 EFI - Magneto 2009 Outlander 500 EFI XT - Magneto 2009 Outlander 650 EFI - Magneto 2009 Outlander 650 EFI XT - Magneto 2009 Outlander 800R EFI - Magneto 2009 Outlander 800R EFI XT - Magneto 2009 Outlander Max 400 EFI - Magneto 2009 Outlander Max 500 EFI - Magneto 2009 Outlander Max 500 EFI XT - Magneto 2009 Outlander Max 650 EFI - Magneto 2009 Outlander Max 650 EFI XT - Magneto 2009 Outlander Max 800R EFI - Magneto 2009 Outlander Max 800R EFI Ltd - Magneto 2009 Outlander Max 800R EFI XT - Magneto 2009 Renegade 500 - Magneto 2009 Renegade 800R EFI STD - Magneto 2009 Renegade 800R EFI X - Magneto 2010 Outlander 400 EFI - Magneto 2010 Outlander 500 EFI - Magneto And Electric Starter V1_STD, XT, XT-P 2010 Outlander 650 EFI - Magneto And Electric Starter 2010 Outlander 800R EFI - Magneto And Electric Starter V1_STD, XT, XTP 2010 Outlander 800R EFI - Magneto And Electric Starter V2_STD 2010 Outlander Max 400 EFI - Magneto 2010 Outlander Max 500 EFI - Magneto And Electric Starter V1_STD, XT, XT-P 2010 Outlander Max 650 EFI - Magneto And Electric Starter 2010 Outlander Max 800R EFI - Magneto And Electric Starter V1_STD, XT, XTP 2010 Renegade 500 EFI - Magneto And Electric Starter V2 2010 Renegade 800R EFI STD - Magneto And Electric Starter V2_STD 2011 Outlander 400 EFI - Magneto 2011 Outlander 500 EFI - Magneto And Electric Starter Outlander 2011 Outlander 650 EFI - Magneto And Electric Starter 2011 Outlander 800R EFI - Magneto And Electric Starter Outlander 2011 Outlander 800R EFI, XXC - Magneto And Electric Starter Outlander 2011 Outlander Max 400 EFI - Magneto 2011 Outlander Max 500 EFI - Magneto And Electric Starter Outlander 2011 Outlander Max 650 EFI - Magneto And Electric Starter 2011 Outlander Max 800R EFI - Magneto And Electric Starter Outlander 2011 Outlander Max 800R EFI Ltd - Magneto And Electric Starter Outlander 2011 Renegade 500 EFI - Magneto And Electric Starter Renegade 2011 Renegade 800R EFI - Magneto And Electric Starter Renegade 2011 Renegade 800R EFI, Xxc - Magneto And Electric Starter Renegade 2012 Outlander 500EFI STD & XT - Magneto And Electric Starter Outlander 2012 Outlander 650EFI STD & XT - Magneto And Electric Starter 2012 Outlander MAX 500EFI STD & XT - Magneto And Electric Starter Outlander 2012 Outlander MAX 650EFI STD, XT & XT-P - Magneto And Electric Starter 2012 Outlander MAX 800REFI LTD - Magneto And Electric Starter 2012 Outlander MAX 800REFI STD, XT & XT-P - Magneto And Electric Starter 2012 Outlander Max STD, XT, 400 EFI - Magneto 2012 Outlander STD, XT, 400 EFI - Magneto 2012 Renagade 500EFI STD - Magneto And Electric Starter Renegade 2013 OUTLANDER 500EFI STD, DPS & XT - Magneto And Electric Starter Outlander 2013 OUTLANDER 650EFI STD, DPS & XT - Magneto And Electric Starter Outlander 2013 OUTLANDER MAX 500EFI STD, DPS & XT - Magneto And Electric Starter Outlander MAX 2013 OUTLANDER MAX 650EFI STD, DPS & XT - Magneto And Electric Starter Outlander MAX 2013 OUTLANDER MAX STD, XT, 400 EFI - Magneto 2013 OUTLANDER STD, XT, 400 EFI - Magneto 2013 RENEGADE 500EFI STD - Magneto And Electric Starter Renegade   Rodyti daugiau Gamintojas Pagal modelį 10033 10000015095Can-Am BRP Outlander 400 10034 10000015101Can-Am BRP Outlander 500 G1 10013 10000015225Can-Am BRP Outlander 650 G1 10015 10000015256Can-Am BRP Outlander 800 G1 10032 10000015084Can-Am BRP Renegade 500 G1 10029 10000015218Can-Am BRP Renegade 800 G1
